Polymer Processing Prowess: Single Screw Extruder Vs. Twin Screw Extruder

In polymer processing, extrusion is essential for melting, shaping, and forming polymers. The decision of single screw extruder vs. twin screw extruder is important for efficiency. On the one hand, single screw extruders are simple and cost-effective for processing homogenous materials. On the other hand, twin screw extruders improve mixing, shear, and flexibility for complicated formulations and processes. In this article, we will navigate the crucial decision-making process of selecting the right extruder, exploring the nuances between single and twin screw extruders and highlighting the pivotal role they play in achieving optimal efficiency.

Single Screw Extruders

Single screw extruders melt polymer with a single helical screw in a heated barrel. The efficiency of this process depends on the friction generated between the solid polymer pellets and the surfaces of the barrel and screw, propelling the pellets forward. Over time, the design of single screw extruders has advanced, integrating enhancements such as secondary flights to enhance processing speed.

Applications of Single Screw Extrusion Machine

Single screw extruders find widespread application in the plastics industry, serving diverse purposes such as plastic film extrusion, pipe extrusion, and profile extrusion.

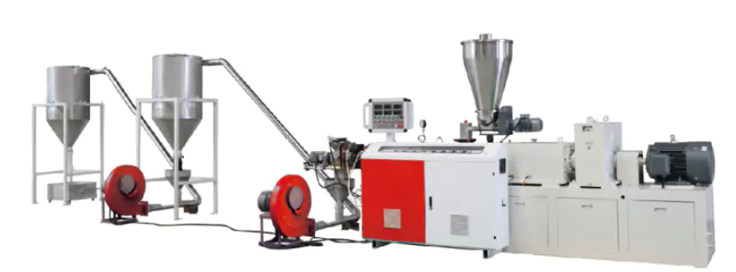

Twin Screw Extruders

Twin screw extruders have two co-rotating, intermeshing screws in a barrel. The design works in sophisticated distributive and dispersive mixing for compounding polymers with additives or fillers. In the context of single screw extruder vs. twin screw extruder, the latter is better for high-precision applications, including masterbatch manufacturing and engineering plastics compounding. This is because they give more processing control. The intermeshing screws boost self-cleaning and throughput, albeit at increased operational complexity.

Applications of Twin Screw Extruder Machine

Twin screw extruders are employed across diverse industries for various purposes, such as:

  • Plastic and polymer processing
  • Food and feed processing
  • Pharmaceuticals and chemicals
  • Rubber and tire industry

Differences Between Single Screw and Twin Screw Extruders

FeatureSingle Screw ExtruderTwin Screw Extruder
Processing EfficiencyLower processing efficiency due to limitations in mixing and material handling.Higher processing efficiency due to superior control, self-cleaning capabilities, and increased throughput.
Mixing CapabilitiesLimited mixing capabilities, less suitable for compounding polymers with additives or fillers.Superior mixing capabilities due to intermeshing screws, ideal for compounding polymers with additives or fillers
Material HandlingLimited adaptability in handling different materials, especially those with high viscosity or heat sensitivityBetter adaptability in handling a wide range of materials, including high-viscosity and heat-sensitive materials.
Operational ComplexityLower operational complexity due to simpler designHigher operational complexity due to intermeshing screws and superior processing control.
Energy ConsumptionGenerally higher energy consumption per unit outputLower energy consumption per unit output due to efficient design and operation
Cost ConsiderationsGenerally cheaper and simpler, making it more economical for certain applicationsMore expensive due to increased complexity and higher operational efficiency. However, it can be more cost-effective in the long run for high-precision applications.
MaintenanceEasier to operate and maintain due to its simpler design.More complex to operate and maintain but offers better self-cleaning capabilities

Please also read PVC Profile Machines: Unveiling the Key Traits of Excellence.

5 Essential Tips for Operating Your Plastic Pipe-Making Machine.

Haohua: One of the Top Plastic Extrusion Machine Manufacturers

Discover the forefront of PVC extrusion with Haohua, the leader in both single screw and twin screw extruders. In the ongoing “single screw extruder vs. twin screw extruder” debate, Haohua stands out, providing unmatched advantages for your PVC pipe production. Our PVC extruder machines boast adaptability, effortlessly adjusting to varied dimensions with a simple mold change in our cutting-edge production line. With 30 years of experience, CE certification, and ISO 9001:2015 compliance, Haohua sets industry standards, ensuring top-tier quality.

Choose Haohua for precision, reliability, and innovation in PVC extrusion. Elevate your plastic production—contact us today for excellence in PVC extruders.
