Extruded PVC Profiles: How Are They Produced?

Extruded PVC profiles are employed in sectors like construction, automotive, and electronics thanks to their durability, lightweightness, and resistance to surrounding external factors. Meanwhile, a high-performance PVC profile production line safeguards uniformity, precise dimensions, and ideal material properties, which impact the adeptness and prolonged existence of these profiles in arduous applications. It can be seen that the production technology makes a significant difference, for it helps preserve quality standards and meet the miscellaneous requirements of these industries

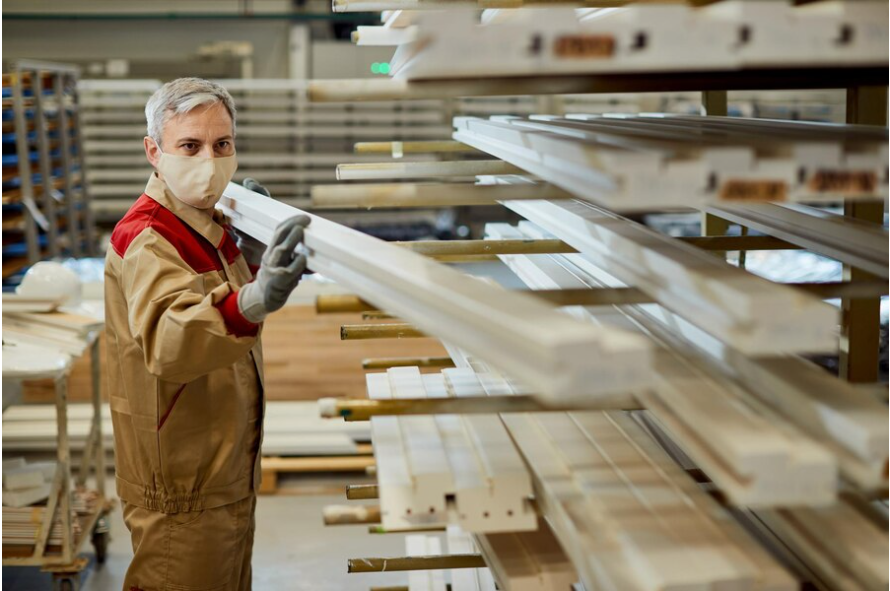

Extruded PVC profiles

(Copyright photo from


Production Process of Extruded PVC Profiles

To figure out how to produce premium PVC profiles, we should first learn the steps involved in the production process of PVC profiles.


1. Material Feeding

In the production of PVC profiles, accurate material feeding is decisive. Raw PVC resin and specific stabilizers, modifiers, and pigments are correctly measured and fed into the extruder. The process usually employs gravimetric or volumetric feeders to guarantee the exact composition and consistency of the mix. Indeed, it is essential for the final product’s properties.


2. Extrusion and Mixing

During extrusion, the PVC mixture undergoes high-temperature processing in a screw extruder, where it is melted and homogenized. The screw design, temperature profile, and shear rates are pedantically controlled for the finest viscosity and molecular orientation. Remember, this step is critical for the extruded PVC profiles’ mechanical strength and dimensional immovability.


3. Cooling

Immediately after extrusion, the profiles are passed through a cooling tank, where controlled cooling solidifies the material. Note that this stage helps determine the microstructure of the PVC. Hence, the cooling rate is prudently regulated to safeguard uniformity and minimize internal stresses.


4. Haul-off, Cutting, and Inspection

In this production phase, the profiles are hauled off at a consistent speed, synchronized with the extrusion rate. The process is followed by precise cutting to desired lengths. Remember that quality control is helpful here, involving dimensional checks, strength testing, and surface inspection to guarantee that the extruded PVC profiles meet rigorous standards.


5. Surface Treatment and Packaging

Finally, the profiles undergo surface treatments like laminating, printing, or coating for aesthetic and functional boosts. After surface treatment, the shapes are packaged in protective film or custom packaging solutions to confirm that they are undamaged during transportation and storage. The final step indicates the readiness of the PVC profiles for market distribution.


Factors Influencing the Quality of Extruded PVC Profiles

Now, let’s discuss critical factors influencing the quality of PVC profiles in manufacturing.

Extruded PVC Profiles
  1. PVC Profile Extruder Considerations

  2. When producing PVC profiles, the extruder determines product quality. Exact temperature control is vital for consistent material properties. Temperatures too high can cause degradation, while too low may prompt improper melting. Efficient material conveyance, chiefly the homogenous mixing of PVC with additives, confirms uniformity in the final profile. For instance, keeping an optimal temperature range in window frame manufacturing safeguards the PVC’s strength.


Please read Choosing the Best Extruder for Polymer Processing: Single Screw vs. Twin Screw.

Please read PVC Profile Machines Demystified: A Guide to Quality

2. Die Design and Material Selection

The die is central to shaping extruded PVC profiles. Material selection for the die impacts its stability and wear resistance, which affects the profiles’ life expectancy and superiority. Tolerance control is another considerable aspect since even minor deviations can bring about noteworthy variations in the profile dimensions. High-precision dies are essential in applications like piping, where dimensional accuracy is dominant for fitting and sealing purposes.


3. Cooling System Efficiency

Rapid and uniform cooling is indispensable in the manufacture of PVC profiles. A well-designed cooling system confirms that the profiles preserve shape while preventing warping or distortion. However, the cooling rate must be adjusted; too fast cooling can produce stresses within the material, whereas too slow can affect production efficiency. Rapid cooling helps attain a smooth surface and precise dimensions in profile extrusion for electrical conduits.


4. Haul-off Machine Dynamics

The haul-off machine regulates the speed and tension of the extruded PVC profile. Consistent speed control keeps uniform profile dimensions, while tension control averts deformation. Apart from that, synchronized operation with the extruder and cooling system assists with circumventing inconsistencies. For instance, in the production of PVC siding, the haul-off machine’s precision guarantees that the siding panels are uniform and straight.


5. Precision in Cutting Equipment

The cutting equipment must deliver clean and accurate cuts for extruded PVC profiles for product quality. Precision cutting affects not only the aesthetics but also the functional integrity of the profiles. For example, in the case of window profiles, precise cuts are needed for proper assembly and functionality. Clean cuts also moderate material wastage for better production efficiency.


Haohuas PVC Profile Production Line

For industries requiring high-quality extruded PVC profiles, a robust production line certifies precision, durability, and client satisfaction. Particularly, our Haohua’s PVC Profile Production Line, featuring models like SJSZ65/132 and SJSZ80/156 with outputs of 50-150KG/H and 150-200KG/H respectively, is unique for its capacity to produce profiles from intricate decorative lines to door frames. Plus, its versatility in handling several moulds enriches its utility in creating custom extruded profiles and meeting specific client demands with kept quality standards.

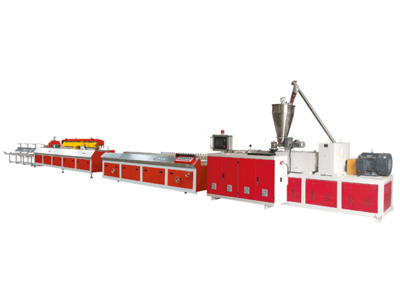

PVC Profile Production Line


Besides producing extruded PVC profiles, Haohua also excels in providing other solutions, such as the PVC pipe extrusion machine, the PVC/WPC foam board production line, and more. By utilizing advanced technologies like plastic pipe extrusion machine technology, we offer progressive solutions in PVC wall panels, edge banding, ceiling production lines, and more.  Also, our machinery can handle versatility in numerous PVC compounds for resourceful, high-quality output. Importantly, our all-inclusive service encompasses equipment supply and detailed factory planning, installation, debugging, and personalized training. Contact us and see how we deal with your definite needs for working excellence.
