PVC Extruder: An Ultimate Guide on Its Types and Components

A PVC extruder is a fundamental component in PVC product manufacturing to shape and form the material. Essentially, it works by feeding PVC resin and other necessary additives into a heated barrel, where they are mixed and melted. After that, the molten PVC is forced through a die for the desired shape, whether pipes, profiles, or sheets. Notably, the extruder’s precise temperature control and screw design certify consistent product quality and resourceful material processing. It impacts the inclusive efficiency of the PVC production line.

图片宽度:888px, 图片高度:480px

(Copyright photo from


PVC Extruder and Its Components

A PVC extruder moulds PVC (polyvinyl chloride) into many shapes and products. It consists of a hopper, where raw PVC material is fed into the machine; a screw conveyor for moving and heating the PVC to a malleable state; a barrel, which houses the screw and heaters to keep the necessary temperature; a die, which shapes the molten PVC into the desired profile; and a cooling system, characteristically involving water or air, to solidify the shaped PVC.


Significantly, the screw design differs according to the PVC product, with different profiles for better mixing, shearing, and melting. Moreover, precise temperature control in the barrel helps prevent the degradation of the PVC material. Additionally, the die is a critical component since it determines the ultimate shape and dimensions of the extruded product and features adjustable parts for fine-tuning. Finally, the cooling system’s efficiency impacts the production speed and product quality. It solidifies the PVC quickly while thwarting warping or deformation.


Different Types of PVC Extruder Machines

Different requirements bring the need for various types of PVC extruders. The following are some, along with their advantages.


1. Single-Screw Extruder

Single-screw extruders are simple, cost-effective, and primarily used for extruding PVC. They consist of a single screw rotating within a cylindrical barrel. The design offers efficient heat transfer and easy operation for straightforward, high-volume PVC processing. However, its simplicity limits its ability to handle more complex or sensitive materials.


2. Twin-Screw Extruder

Twin-screw extruders feature two intermeshing screws for better mixing and shearing capabilities. The design helps process formulations with high fillers, additives, or recycled content. Twin-screw models are also favoured for high-quality, uniform output with complex PVC compounds. The intermeshing screws enable better material intake and more consistent melting. Still, they come at a higher cost and complexity than single-screw extruders.


3. Dual-Strand Extruder

Dual-strand extruders are specified for high-output applications and can produce two PVC profiles concurrently. It’s helpful for large-scale production runs of standardized PVC profiles because the setup doubles the production capacity. Remember, the primary challenge lies in upholding uniformity and quality across both strands, which demands precise control systems and expert operation.


4. Cold Feed Extruder

Cold-feed PVC extruders handle rubber-like or highly elastic materials. Furthermore, they are also suitable for certain types of PVC. The material is fed into the extruder at or under room temperature in this setup. A cold feed extruder necessitates increased horsepower (HP) compared to traditional extruders, yet it operates with lower overall horsepower and eliminates the need for warming mills. The scroll experiences accelerated wear, and the equipment demands less floor space.


5. Hot Feed Extruder

Hot feed extruders preheat the PVC material before it enters the screw barrel for faster melting and processing. This type is operational for high-throughput applications where speed is critical. Plus, hot feed extruders can handle innumerable PVC formulations with changing levels of plasticizers or other additives. Nevertheless, the preheating step demands careful temperature management to avert premature degradation or inconsistency in the final product.



Choose a PVC Extrusion Machine From Haohua

When selecting a PVC extruder for wall and panel production, consider factors like processability, stability, and output capacity.

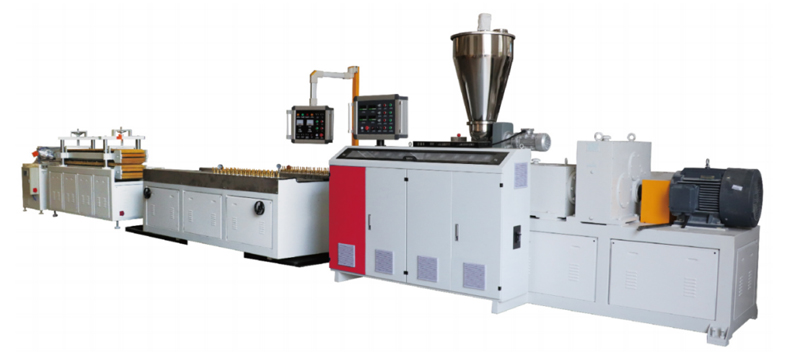

For instance, Haohua’s PVC wall panel production lines produce panels comparable to logs for easy nailing, cutting, and drilling. It confirms a smooth surface texture without the demand for painting. Besides, these panels demonstrate greater physical properties, with increased stability and decreased susceptibility to cracking, warping, or diagonal lines. Note that we offer models like SJSZ48/118, SJSZ53/128, and SJSZ65/132, which manage varying widths (150-600mm) and outputs (over 800-1600 m2/24h) for miscellaneous production needs. Moreover, you are available to find the PVC pipe extruder, the PVC profile extruder, and more on our website.

Please also read A Pro’s Guide to Optimal PVC Pipe Production Line Selection.

Maximizing Performance: Single Screw Extruder versus Twin Screw Extruder.

图片宽度:800px, 图片高度:364px图片宽度:500px, 图片高度:227px


We at Haohua claim potent PVC extrusion technology for precise control over panel thickness and uniformity and quality assurance in construction materials. Our PVC extruder solutions, including the PVC pipe extruder, are ready to offer you premium output with efficiency. Also, our machinery’s high-efficiency cooling systems moderate production downtime for consistent output rates. Further, Haohua’s integrated solutions encompass machinery and specific equipment operation and maintenance training, so clients have a complete package beyond equipment sales. The approach optimizes product quality and the production process for cliens.
